1. Introduction

CPUDual PowerPC G4 1.25 GHz
RAM384MB
VideoNVIDIA GeForce4 Ti 4600 128MB AGP
NetworkWired Ethernet
Hard Disk160GB Spinning Rust
OpticalZuluIDE w/ Wireless Interface

This information pertains to a particular specimen and may reflect upgrades, repairs, modifications, or factory options not present by default.

This specific PowerMac G4 Mirror Drive Doors uses a spinning rust hard drive because it has stubbornly refused to work with the CF cards and other replacements attempted so far. One thing we have *not* attempted is a SATA controller with a modern SSD, so that may be worth a shot!

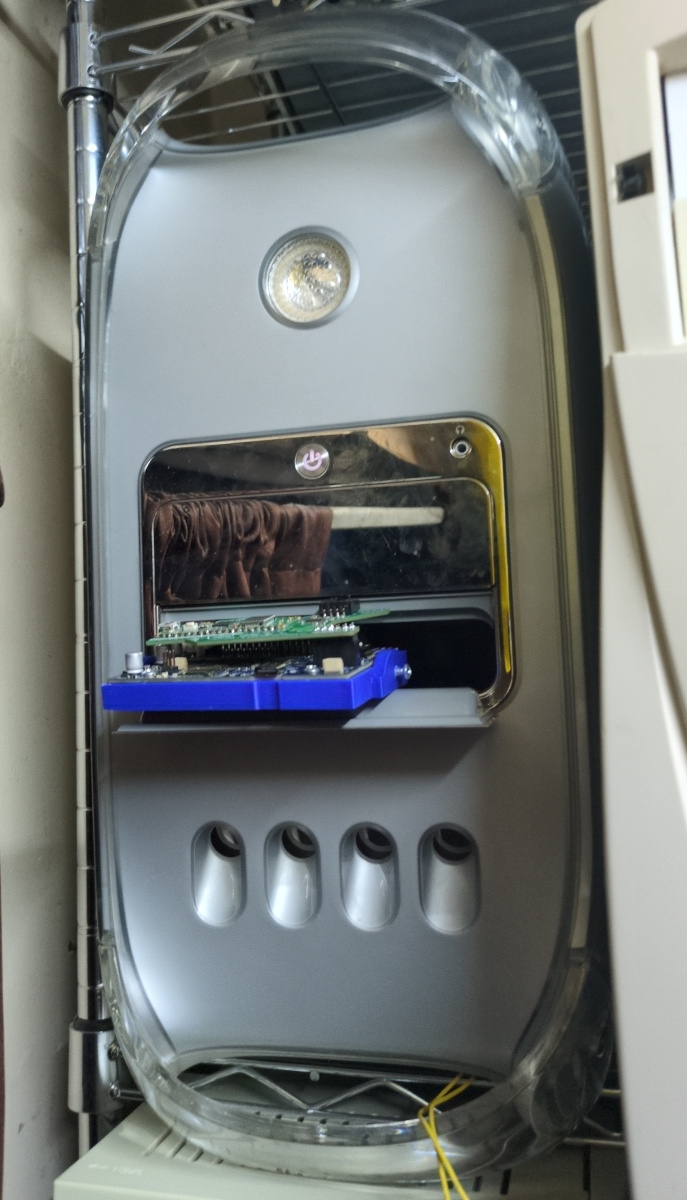

Front view of the PowerMac G4 Mirror Drive Doors. A ZuluIDE is awkwardly sticking out of one of the mirror drive doors.

2. Power Button Relay

Being one of our "permanent" retro fixtures, this machine is awkwardly placed up high using pullies and ladders. This makes physically reaching it to power it on impractical, leading to a need for a remote power button in the form of our relay bank.

Wires from the relay bank are connected directly to the power board. At first we attempted a continuity test on the cable from the power board, but the board seems to do some kind of encoding which renders this useless. This board was surprisingly difficult to find replacement instructions for online, so we have provided some notes here:

Accessing the front screw holding the power board box in requires removing the front panel, which requires the removal of at least one of the front legs with an allen key.

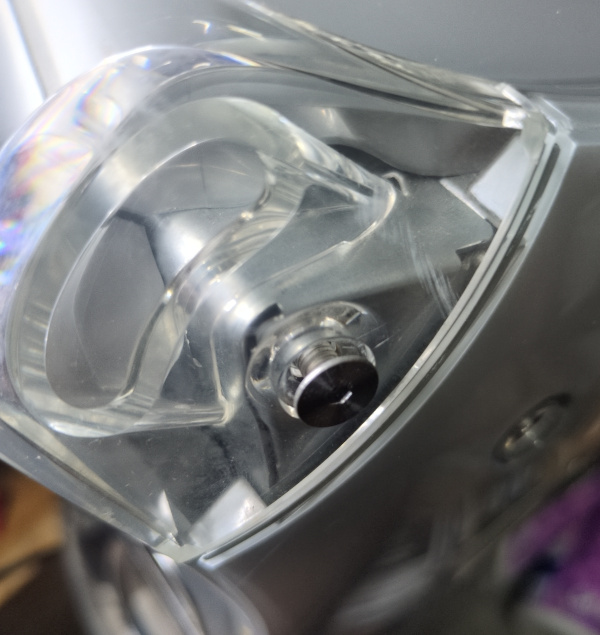

Photo of the corner leg of the computer with the allen bolt partially screwed out.

With the screw holding the power board box in removed, two plastic rivets must also be popped out, ideally with an eyeglass-size regular (flat) screwdriver or similar.

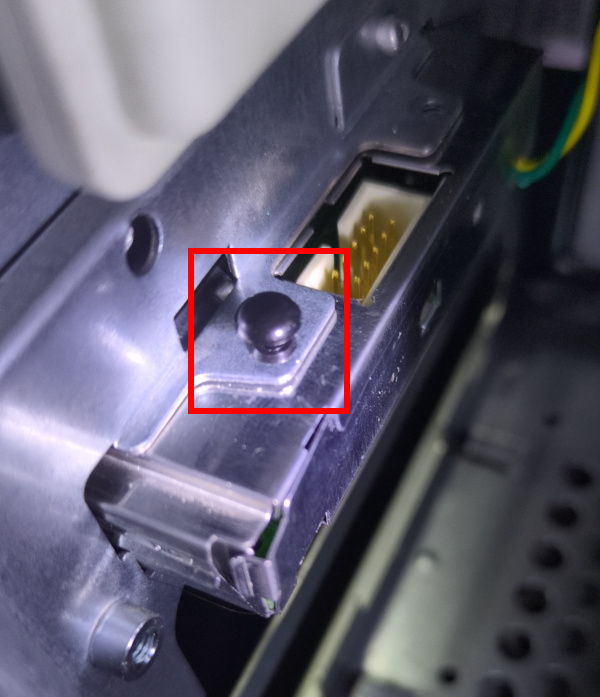

Plastic rivet standing partially out of the rear of the power board box inside of the PC.

The socket shown below must also be popped out!

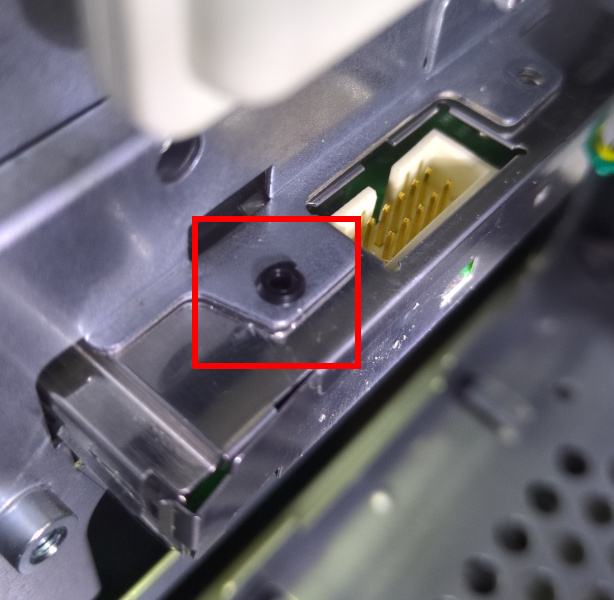

Plastic rivet socket on the rear of the power board box inside of the PC.

Initially, we routed the wires out of the rear of the power board box. This was a mistake, as the sharp edges of the box quickly broke through the insulation and bridged them, leading the computer to act as if the power button was always being pressed.

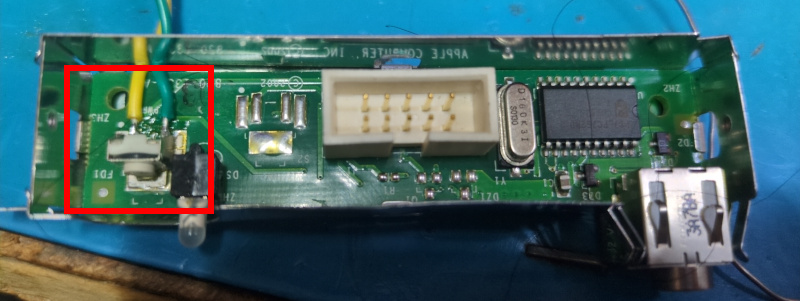

Two wires soldered to the connections on the rear of the physical power button on the power board.

We rerouted the wires out of one of the tab holes in the side of the box, after applying a dab of hot glue on the inside to provide strain relief.

Two wires coming out of the tab hole in the side of the power board box.

With these considerations, we were able to attach the wires to the relay bank controlled by esphome.
